How to Create a Site Plan for a Grid-Tie Solar System

A.选择一个啊f our complete2019新万博appmanbetⅩ . Call us at(877) 297-0014if you need assistance. Select your complete SES system and modules2019新万博appmanbetⅩ .

B.Email or fax usyour solar module placement drawing. Some examples are shown below. Do a simple hand sketch or drawing showing the dimensions of your available roof or ground spaces(s). Draw in each of the solar modules as rectangles in either portrait or landscape mode using the solar module dimensions provided in our2019新万博appmanbetⅩ .

C.Answer the following questions on the solar module placement drawing:

  1. 安装的名称和地址,包括邮政编码,联系电话和电子邮件地址。
  2. Specify solar module model and inverter model.
  3. Distance in feet from the solar array to the inverter.
  4. Show location of inverter and solar AC disconnect.
  5. Distance in feet between inverter and solar AC disconnect.
  6. Distance in feet between utility panel and solar AC disconnect.
  7. Roof type and material or specify ground mount and show location of solar array to scale on property map with information above.


Example Drawings:

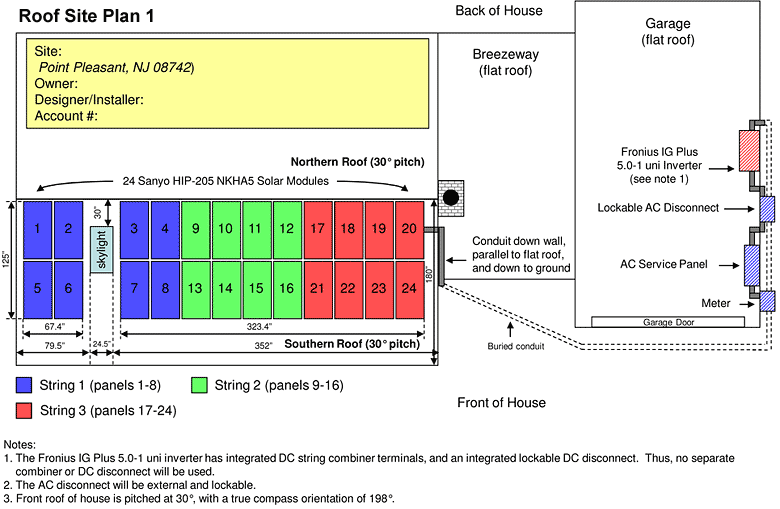

Solar System Roof Site Plan

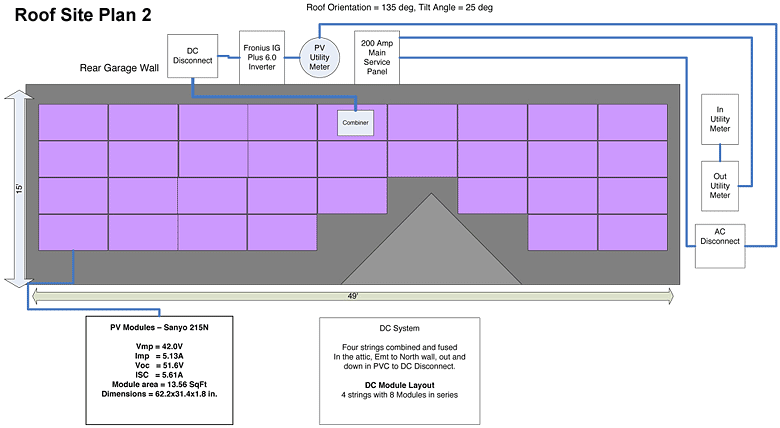

Solar Electric System Roof Site Plan
